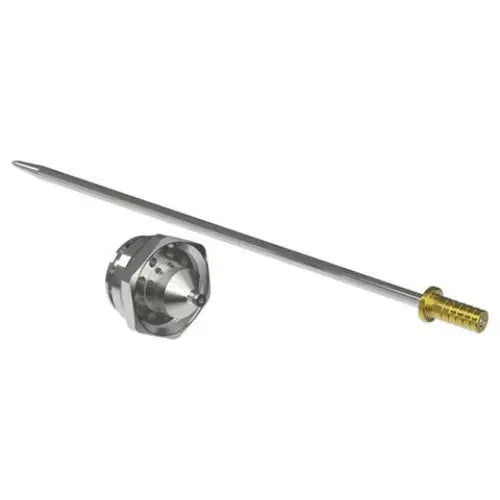

Needle Nozzle Kit | Sagola 4600
The Sagola 4600 Xtreme Needle Nozzle Kit is interchangeable with both the 4600 and 4600 digital spray guns.
Compatible with both Sagola 4600 & 4600 Xtreme models.
Change your flow rate with the 4600 needle & nozzle kit. This kit will work on any 4600 spray gun and is easily interchangeable. These kits are very durable and easy to clean.
-
Interchangeable Parts
-
Consistent high quality finishes
-
Low Maintenance
Reliable & Interchangeable
1. Stainless steel nozzle that provides optimal paint flow allowing for fast and smooth applications.
2. Product regulator with a flow indicator ring that allows for precise measurement of flow.
3. No metallic or plastic external parts used in the air distribution. This makes the cleaning process easier
4. Air valve that allows for accurate set up of air pressure. Precise “soft flow” valve that does not wast paint.
5. Interchangeable air caps with different colors for easy identification.
Low Maintenance
6. No seals and gaskets in the product area. Made without air diffusers, blind chambers or threads that are in contact with the paint/product/material. Metal in metal contact making this gun extremely easy to maintain and clean.
7. One piece automatic paint packing gland that minimizes the potential for damage and breakage. Mush easier to remove from the gun when cleaning.
Making Your Job Easier
8. Ergonomic aluminum body that is anodized forged. Light and perfectly balanced.
9. Stainless steel trigger increasing operator comfort and reducing fatigue. Smooth trigger flow.
10. Organize your guns with color coded identifiers. Easily manage multiple spray guns.
11. Balanced ergonomic handle.
Kit Contents
- Air Cap & Needle/Nozzle Kit
- 650ml (22fl oz) Reusable plastic gravity cup with product mini-filter
- Wrench for removing and fitting the nozzle and all servicing needs
- Color code identifiers perfect for identifying guns when there are multiple painters (x3)
- Cleaning brush
- Key Assembly for changing the air valve
Size Guide
Needle/Nozzle | Aqua Air Cap Common Applications |
---|---|
1.20mm | Finishes & Waterborne Paints |
1.25mm | Low Viscosity & Waterborne Paints |
1.30mm | Waterborne Paints |
1.35mm | High Speed Waterborne Paints |
Needle/Nozzle | Clear Air Cap Common Applications |
---|---|
1.20mm | Low viscosity Clear coats |
1.25mm | Low viscosity clear Coats |
1.30mm | HS Clear Coats |
1.35mm | Clear Coats & HS Single Stage |
1.40mm | High Speed Clear Coats & HS Single Stage |
Needle/Nozzle | HVLP Air Cap Common Applications |
---|---|
1.20mm | Low viscosity Base Coats |
1.25mm | Low viscosity Base Coats |
1.30mm | Water & Solvent Based Clear Coats |
1.35mm | High Speed Clear Coats |
1.40mm | Single Stage High Transfer Clear Coats |
Needle/Nozzle | Titania Air Cap Common Applications |
---|---|
1.20mm | Low viscosity Clear coats |
1.25mm | Low viscosity clear Coats |
1.30mm | Clear & Base Coats |
1.35mm | clear coats & Single Stage |
Additional Information
Weight | N/A |
---|---|
Needle/Nozzle |
1.20mm, 1.25mm, 1.30mm, 1.35mm, 1.40mm |
Compatible |
4600 Xtreme, 4600 Xtreme Digital |
Type of Product: Needle Nozzle Kits
