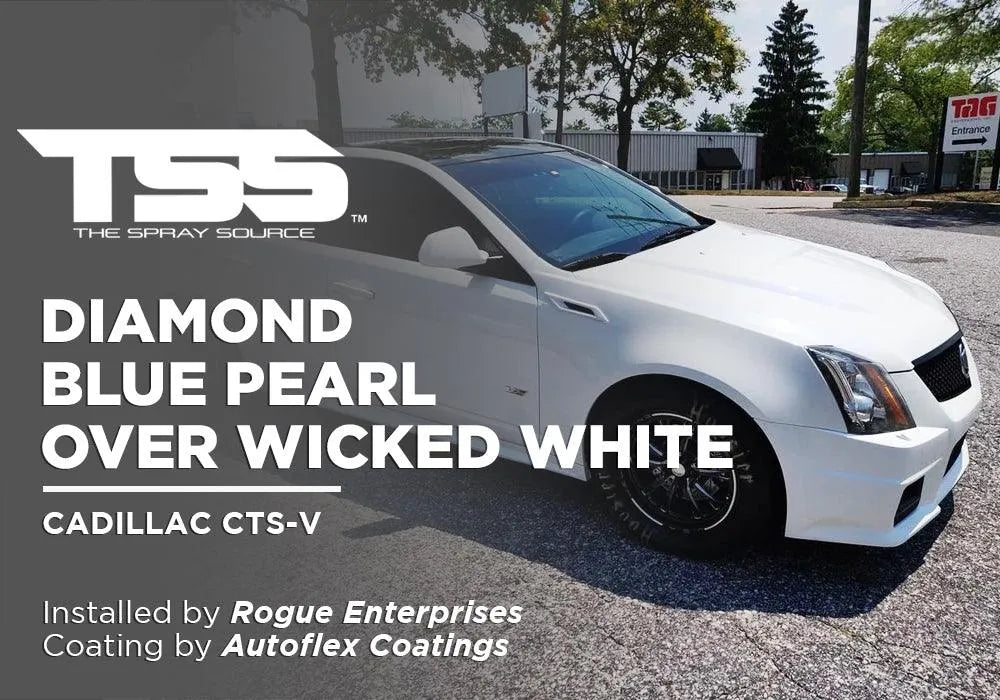

DIAMOND BLUE PEARL OVER WICKED WHITE | AUTOFLEX COATINGS | CADILLAC CTS-V

Here's a sleek ride with an even sleeker color combo! The color on this Cadillac CTS-V was achieved by using our Diamond Blue Pearl over a Wicked White basecoat. The Diamond Blue just adds that subtle highlight that elevates the aesthetic of the ride even more! In addition to these pigments, our Pitch Black was also used on the roof, trim, and grill of this ride to compliment the other colors.

Installer: Rogue Enterprises

Coating: Autoflex Coatings

Pigments needed for this look:

- Wicked White basecoat

- Diamond Blue Pearl

- Pitch Black for the roof, trim, and grill



Like all of our pearl pigments, Diamond Blue Pearls can be used in Alpha Automotive Paint or other traditional automotive paint, epoxy resin for woodworking and other art, nail polish, plastisol, Autoflex Coatings, Performix Plastidip, Halo efx, DYC Proline, waterbased airbrush paint, slime, bed liners, powder coat and MANY other applications! Take a look at our Alpha Pearl Mixing and Uses Page for more information! This color is available in Automotive Paint & Aerosol Spray Cans as well.

This project uses an Alpha Custom Color basecoat, bound in a special binder for pigment control, UV resistance, and excellent pearl suspension. The basecoat mixes 1:1 with an AR-30xx reducer for smooth application and consistent coverage. Our AP-7541 DTM Primer-Sealer provides outstanding adhesion, flexibility and fast drying, while the AC-4521 HS Glamour Clearcoat adds long-lasting gloss, UV protection and durability.

Project Step-by-Step Guide

  1. Complete your prep, body work, primer, and sanding following our video tutorials.
  2. Block-sand the exterior panels with 320 grit sandpaper and scuff door jambs, engine bay and tight areas with a red scuff pad.
  3. Blow off all dust outside and wipe down with wax & grease remover.
  4. If applicable, paint the door jambs and engine bay first, then wait 24 hours before moving on to the exterior.
  5. Re-mask and wipe down the project with anti-static wax & grease remover.
  6. Mix and spray one medium wet coat of AP-7541 DTM Primer-Sealer (4:1:1 ratio) using a 1.4 mm needle spray gun.
  7. After the sealer is 100% dry to the touch, wait at least an hour.
  8. Mix and spray your basecoat colour directly over the sealer (most colours require 2–4 coats for coverage/effect).
  9. Wait until the basecoat is dry to the touch before recoating.
  10. After the final basecoat is dry, wait 45 minutes.
  11. Mix and spray 2–3 coats of AC-4521 HS Glamour Clearcoat (2:1 ratio). Recoat when the previous coat is just tacky (fingerprints).
  12. Let cure for 12 hours in a warm, ventilated area.
  13. If wet sanding & buffing, leave masked for that process; otherwise unmask & assemble.
  14. Enjoy your newly painted project!
